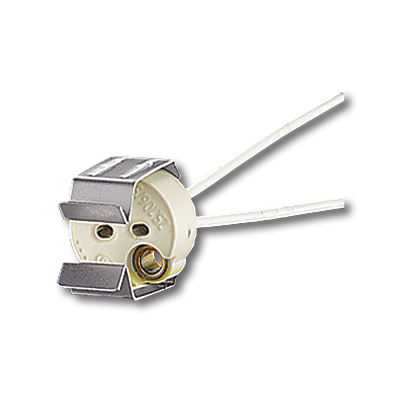

Lampholder GU5.3 base MR-16 lamps
Article number:
25.105.3101-0
EAN:
-
Product information "Lampholder GU5.3 base MR-16 lamps"
- The method of wiring must be such that no stress or bending motions will be transferred to the contacts, thus reducing the contact / pressure on the lamp pins.
| Ausführung: | GU5.3 / Connector GX5.3 |
|---|---|
| Connector: | Rear leads |
| Halogen lamps-low voltage: | GU5.3 |
| Material: | Housing: Ceramic / Mica plateContacts: Ni |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 500 |
| Producttype: | GU5.3 / Connector GX5.3 |
| Series: | Low Voltage Halogen Lampholders |
| T-marking: | 250 |
| Weight: | 8 g |
| Wires: | Cu, nickel plated 1.0 mm², with ferrule, Insulation PTFE (max. 250° C), Lead length: 140 mm |
| mounting method 1: | Screw mount |
| old article number: | 25.105.3101.00 |
Available Downloads
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 25.105.3101-0 | Genehmigung_liegt_vor-Approval_at_hand1193523 | ||
| 25.105.3101-0 | Genehmigung_liegt_vor-Approval_at_hand750451 | ||
| 25.105.3101-0 | Genehmigung_liegt_vor-Approval_at_hand4805042 | ||
| 25.105.3101-0 | ENEC_Zeichen-ENEC_Approval689370 |
