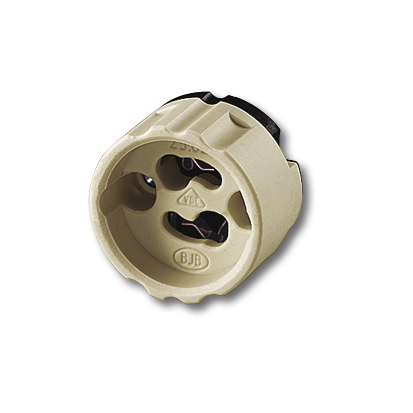

Lampholder GZ10
Article number:
25.828.2000-0
EAN:
-
-
-
-
-
max. ø 1,8 mm
Product information "Lampholder GZ10"
- Wires permanently installed after insertion
- cURus: File E-93328
- cURus: File E-93328
| Ausführung: | Line Voltage Halogen Lampholder GZ10 |
|---|---|
| Connector: | Push-wire contacts for diagonal side wiring |
| Halogen lamp high-voltage: | GZ10 |
| Material: | Housing: Ceramic / PPSContacts: CrNi |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 500 |
| Producttype: | Line Voltage Halogen Lampholder GZ10 |
| Series: | Line Voltage Halogen Lampholders |
| UL: | yes |
| Weight: | 14 g |
| approbation: | cURus |
| mounting method 1: | Screw mount |
| old article number: | 25.828.2000.00 |
Available Downloads
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 25.828.2000-0 | Genehmigung_liegt_vor-Approval_at_hand4805042 | ||
| 25.828.2000-0 | Genehmigung_liegt_vor-Approval_at_hand3500058 | ||
| 25.828.2000-0 | cURus,_gültig_für_USA_und_Kanada-cURus_(USA_and_Kanada)703640 | ||
| 25.828.2000-0 | ENEC_Zeichen-ENEC_Approval690285 |
-
-
-
-
max. ø 1,8 mm

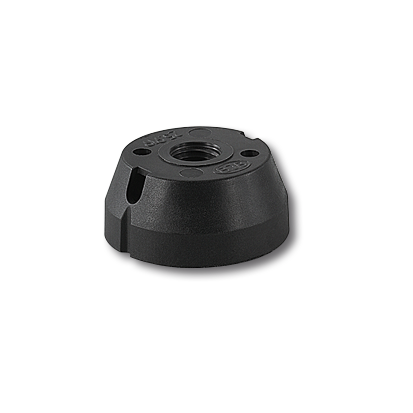

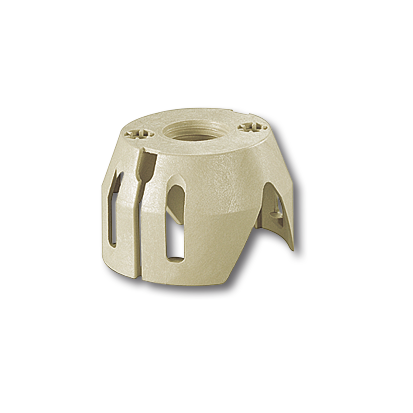

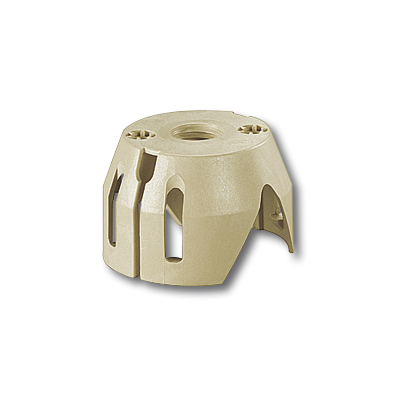

Accessories
