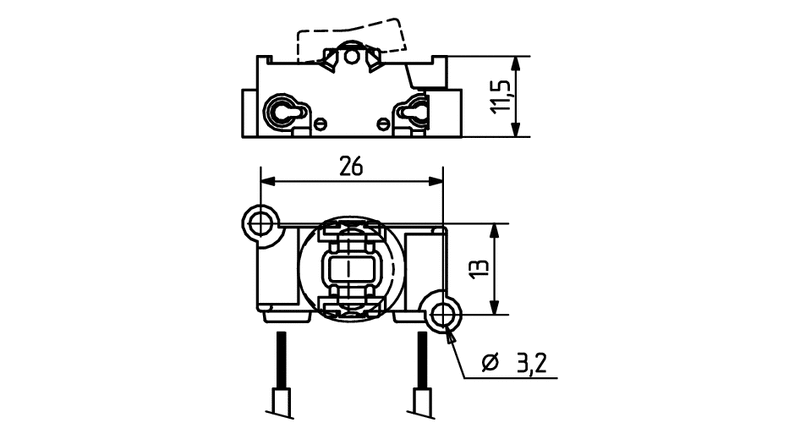

Rocker Switches Single Pole Screw mounting
Article number:
43.409.U315-0
EAN:
-
-
0,5 - 1,0
-
0,5 - 1,0 mm²
-
0,5 - 1,0 mm²
-
max. ø 1,8 mm
-
-
-
Product information "Rocker Switches Single Pole Screw mounting"
Protected against electric shock after insertion of conductor. Additional cover not required.
Stripping of wires: 7 mm
Stripping of wires: 7 mm
| Ausführung: | Rocker Switches Single Pole Screw mounting |
|---|---|
| Color: | white |
| Luminaire wall thickness: | 0,5-2,0 |
| Material: | Contacts: silver / silver |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 1000 |
| Producttype: | Rocker Switches Single Pole Screw mounting |
| Series: | Rocker switches |
| Switch components: | Housing |
| Weight: | 3 g |

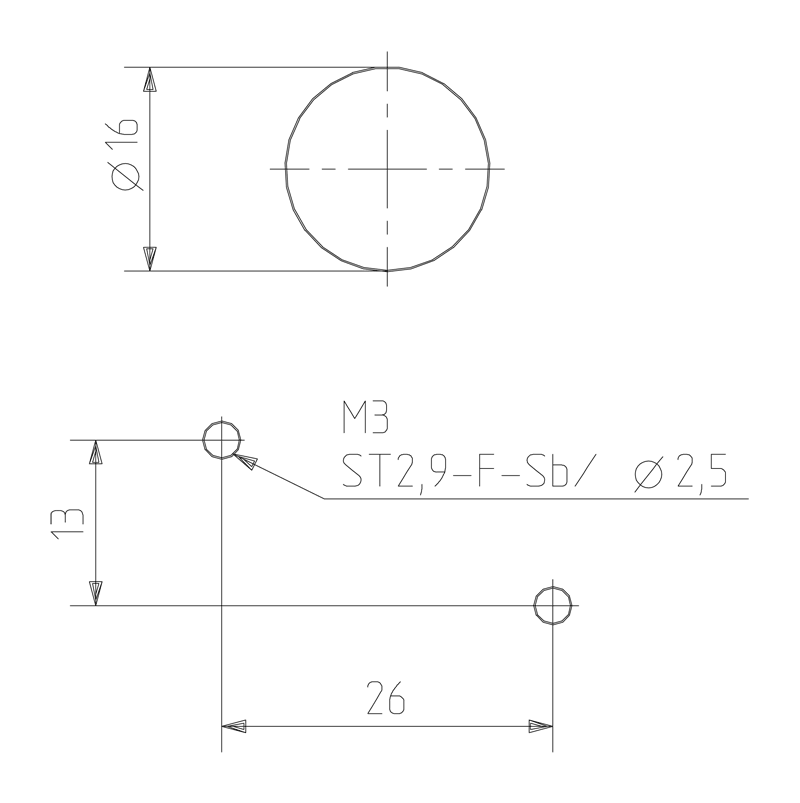

| mounting method 1: | Screw mount |
| old article number: | 43.409.U315.50 |
Available Downloads
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 43.409.U315-0 | Genehmigung_liegt_vor-Approval_at_hand750576 | ||
| 43.409.U315-0 | Genehmigung_liegt_vor-Approval_at_hand3677886 | ||
| 43.409.U315-0 | PSE-Mark_(Japan)-PSE-Mark1206280 | ||
| 43.409.U315-0 | Genehmigung_liegt_vor-Approval_at_hand4005320 | ||
| 43.409.U315-0 | ENEC_Zeichen-ENEC_Approval2905973 |
-
0,5 - 1,0
-
0,5 - 1,0 mm²
-
0,5 - 1,0 mm²
-
max. ø 1,8 mm
-
-
-
Accessories
