Terminal block (Rast 5)
Article number:
46.455.3111-0
EAN:
-
-
max. ø 1,8 mm
-
-
0,5 - 1,0
-
0,5 - 2,5 mm²
-
max. ø 1,8 mm
-
-
24A/450V
-
Product information "Terminal block (Rast 5)"

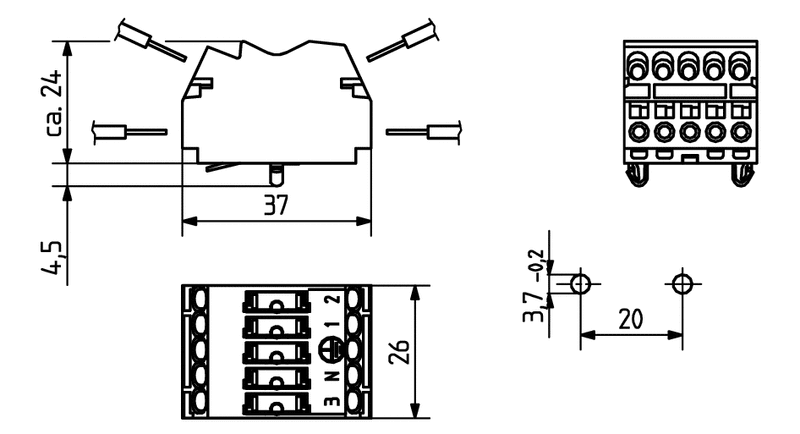

Release button on the inside for the upper connections (see drawing)
Release options for bottom connections (Wire release by twist and pull)
Release options for bottom connections (Wire release by twist and pull)
| Color: | white |
|---|---|
| Lettering: | 3 N ⏚ 1 2 |
| Luminaire wall thickness: | 0.5 - 1.0 |
| Material: | Housing: PC (V2) |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 5 |
| Operating current: | 24A |
| Operating voltage: | 450V |
| Packaging quantity: | 250 |
| Producttype: | 5 pole - Rast 5 pushwire terminal |
| Series: | Rast5 pushwire terminals 5 pole |
| Weight: | 17 g |
| mounting method 1: | Snap fixing |
| old article number: | 46.455.3111.50 |
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 46.455.3111-0 | ENEC_Zeichen-ENEC_Approval4254164 | ||
| 46.455.3111-0 | Genehmigung_liegt_vor-Approval_at_hand4070828 | ||
| 46.455.3111-0 | Genehmigung_liegt_vor-Approval_at_hand3416135 |
-
max. ø 1,8 mm
-
-
0,5 - 1,0
-
0,5 - 2,5 mm²
-
max. ø 1,8 mm
-
-
24A/450V
-
