Cable clamp
Article number:
46.903.E371-0
EAN:
-
Product information "Cable clamp"

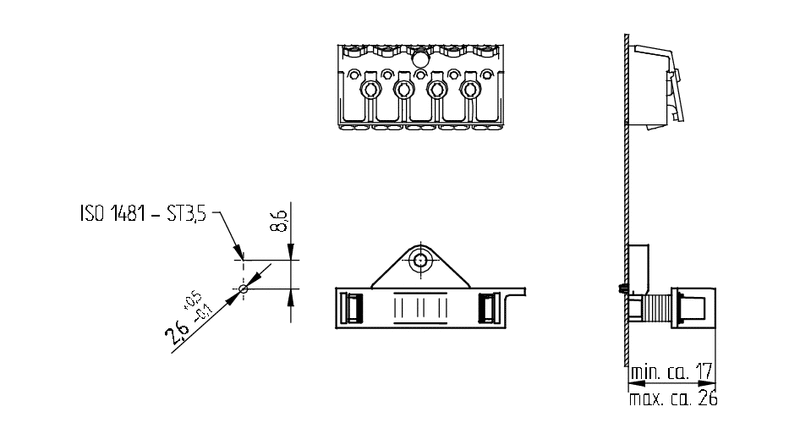

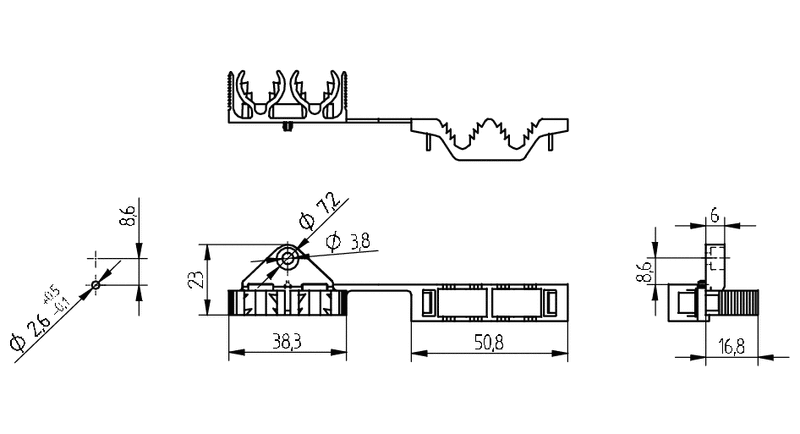

Screw fixing: for self-tapping screws ISO 1481 - ST 3.5 - C / -F
Screw length and screw form must be suitable for the intended application.
Suitable for PVC cable with ø 6 mm - 13.5 mm
Other cable insulations to be checked by user in accordance with EN 60598.
Screw length and screw form must be suitable for the intended application.
Suitable for PVC cable with ø 6 mm - 13.5 mm
Other cable insulations to be checked by user in accordance with EN 60598.
| Ausführung: | Cable clamp |
|---|---|
| Color: | white |
| Material: | Material: POM |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 500 |
| Producttype: | Accessories terminal blocks |
| Series: | Pushwire terminals |
| Weight: | 6 g |
| mounting method 1: | Screw mount with moulded anti-rotation lug |
| old article number: | 46.903.-371.50 |
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|
