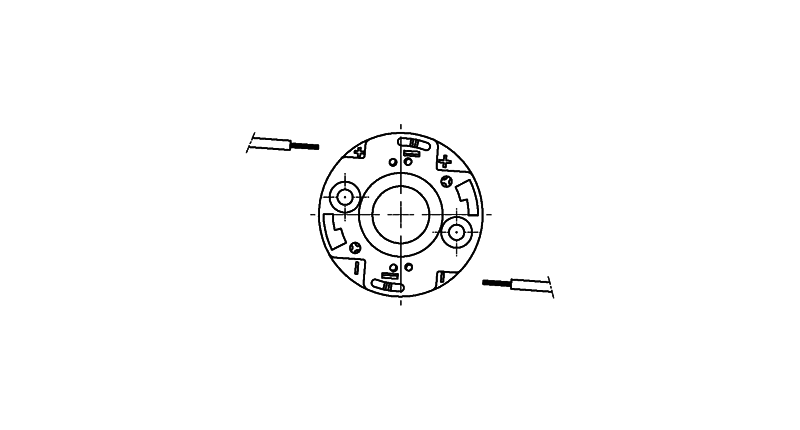

COB Connector Slim Ø35 LED array 13.5x13.5

Article number: 47.360.1020-0

EAN: -

0.35 - 0.5 mm², AWG 22 - 20 / max. 1.05 mm
0.35 - 0.5 mm², AWG 22 - 20 / max. 1.05 mm
8.0 + 1 mm

Product information "COB Connector Slim Ø35 LED array 13.5x13.5"

With integrated COB holder and interface for reflectors 47.935 and 35.835
Easy pre-assembly of LED
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 8+1 mm
Polarity symbols of connector and LED must be observed in assembly
Specification of LED manufacturer must be observed
In a series connection of LED modules, the air gap and creepage distances has to be sized that each module covers the total voltage of the series connection
*Please note the max torque of the COB manufacturer

BJB Data Share:	https://share.bjb.com/index.php/s/5KDQj7rH879E7AG
Certification Mark:	VDE CERTIFICATE OF CONFORMITY WITH FACTORY SURVEILLANCE EN 60838-1
Conductor cross-section:	Solid wires: 0.35 - 0.5 mm², AWG 22 - 20 / Stranded, tinned wires: 0.35 - 0.5 mm², AWG 22 - 20 / max. 1.05 mm
Country of origin:	DE

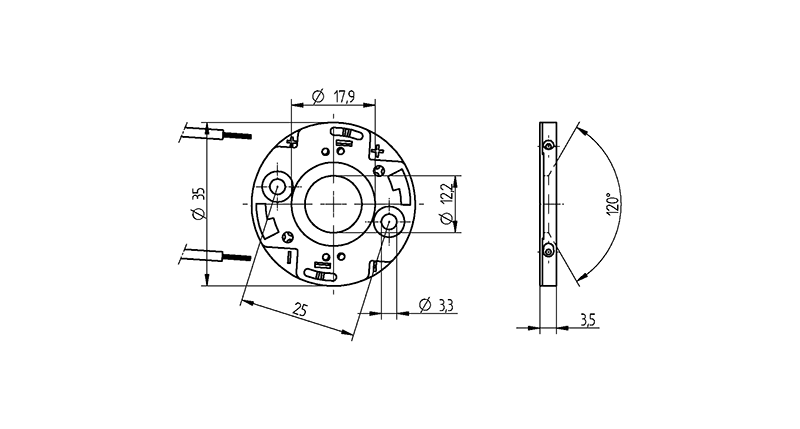

Diameter:	Ø 35 mm
LED?:	intended for the use of COBs
LED Array:	13.5 x 13.5 mm
Material:	Housing: PBTContacts: CuSn
Note warranty conditions:	*Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid.
Operating temperature:	max. 110°C
Packaging quantity:	945
Pre-centering for COB:	Yes
Prefixation:	Clamping tab
Producttype:	Slim Spotlight Connectors and Accessories
Rating:	3A / 150 VDC
Series:	COB Slim Connectors - 47.360
Solid wires:	0.35 - 0.5 mm², AWG 22 - 20
Stranded, tinned wires:	0.35 - 0.5 mm², AWG 22 - 20 / max. 1.05 mm
Type of packaging:	Bag
UL:	yes
Utilityfilm Link:	https://www.youtube.com/watch?v=OYL0S6LxVe0
Weight:	2,8 g
mounting method 1:	Screw mount
mounting method 2:	P2F fixing with 28.902.-102
mounting method 3:	Tip for fastening by screws: The screw chamber of the 47.360 series has a height of 1.9 mm. The screw head must not be higher, otherwise the reflector will fit poorly or not at all.
old article number:	47.360.1020.50

Available Downloads

Available CAD Downloads

3D-CAD_(STEP,_Parasolid,_IGES,_3D-PDF)01Z-R09-03

Certifications

Article Number	Status	Description	Documents
47.360.1020-0			cURus,_gültig_für_USA_und_Kanada-cURus_(USA_and_Kanada)3437952
47.360.1020-0			ÜG_Überwachungsgutachten-Certificate_of_Conformity5663881

Suitable for the following LED types

LED manufacturer	LED designation	More information
Citizen	CLL024	ce.citizen.co.jp
Citizen	CLU027	ce.citizen.co.jp
Citizen	CLU028	ce.citizen.co.jp
Citizen	CLU7A2	ce.citizen.co.jp
Citizen	CLU7B2	ce.citizen.co.jp
Citizen	CLU700	ce.citizen.co.jp
Citizen	CLU702	ce.citizen.co.jp
Citizen	CLU703	ce.citizen.co.jp
Cree	CMT1407	cree-led.com
Cree	CMT1412	cree-led.com
Cree	CMT1420	cree-led.com
Cree	CMU1003	cree-led.com
Cree	CMU1006	cree-led.com
Cree	CMU1010	cree-led.com
Cree	CMU1013	cree-led.com
Edison	Opto 9W	www.edison-opto.com
Everlight	Xuan1313	www.everlight.com
Itswell	IWC-B09R2-XX-B1202	www.itswell.com
LUMILEDS	Luxeon L2C6-xxxxxL02x0600	www.lumileds.com
LUMILEDS	Luxeon L2C6-xxxxxL03x0600	www.lumileds.com
LUMILEDS	Luxeon L2C6-xxxxxL04x0600	www.lumileds.com
Lextar	PB04H07.0	www.lextar.com
Lextar	PB10H08.1	www.lextar.com
Lextar	PB13H01 V4	www.lextar.com
Liteon	M082	www.liteon.com
Luminus	CHM-6-XH20 Gen2	www.luminus.com
Luminus	CHM-9 GEN1 AC00	www.luminus.com
Luminus	CHM-9 GEN2 AC10	www.luminus.com
Luminus	CIM-9 AC30 Gen3	www.luminus.com
Luminus	CIM-9 AC40 Gen4	www.luminus.com
Luminus	CLM-9 GEN1 AC00	www.luminus.com
Luminus	CLM-9 GEN3 AC30	www.luminus.com
Luminus	CLM-9 GEN4 AC40	www.luminus.com
Luminus	CXM-09-AC00	www.luminus.com
Luminus	CXM-3 - 36V, 18V, 9V	www.luminus.com
Luminus	CXM-4 - 36V, 18V, 9V	www.luminus.com
Luminus	CXM-6 AC30 Gen3	www.luminus.com
Luminus	CXM-6 AC40 Gen4	www.luminus.com
Luminus	CXM-9 AC00	www.luminus.com
Luminus	CXM-9 AC30 Gen3	www.luminus.com
Luminus	CXM-9 AC40 Gen4	www.luminus.com
Luminus	CXM-9 GEN2 AC00	www.luminus.com
OSRAM Opto Semiconductors	Soleriq S9 Gen. 2	www.osram-os.com
Philips	Fortimo SLM C 1203 L09 1313 G7N	www.lighting.philips.co.uk/oem-emea
Plessy	PLWK1100CVXW	plesseysemiconductors.com
Plessy	PLWK1595Cx8	plesseysemiconductors.com
Prolight Opto	PASB-16FNL-EC2NS40 16W	www.prolightopto.com
Prolight Opto	PASB-16FVL-EC2NS27 16W	www.prolightopto.com
Prolight Opto	PASB-16FVL-EC2NS40 16W	www.prolightopto.com
Samsung	LC003/6/9/13D	www.samsung.com/led
Samsung	LC003D Gen. 3	www.samsung.com/led
Samsung	LC006D Gen. 3	www.samsung.com/led
Samsung	LC009D Gen. 3	www.samsung.com/led
Samsung	LC010C	www.samsung.com/led
Samsung	LC010C Gen. 2	www.samsung.com/led
Samsung	LC013D Gen. 3	www.samsung.com/led
Seoul Semiconductor	SAWS0661A [SunLike]	www.seoulsemicon.com
Seoul Semiconductor	SAWS1063A [SunLike]	www.seoulsemicon.com
Seoul Semiconductor	ZC6	www.seoulsemicon.com
Toyoda	Gosei 13,5x13,5	www.toyoda-gosei.com
Tridonic	SLE 06mm R SNC8	www.tridonic.com
Tridonic	SLE 09mm R SNC8	www.tridonic.com
Tridonic	SLE G5 LES6	www.tridonic.com
Tridonic	SLE G5 LES11	www.tridonic.com
Tridonic	SLE G6 10mm 1200lm	www.tridonic.com
Tridonic	SLE G7 09mm 1200lm	www.tridonic.com
Tridonic	SLE G7 LES 9	www.tridonic.com
Tridonic	Talexx SLE G4/G5/G6/G7 LES10	www.tridonic.com
Tridonic	Talexx SLE G5 LES6	www.tridonic.com
Tridonic	Talexx SLE G5 LES11	www.tridonic.com
Vossloh-Schwabe	DMC122	www.vossloh-schwabe.com
Xicato	XOB09 LES 9,8	www.xicato.com
