BJB ZB 18 Dome 80 mm high - Cover for base plate with twist protection
Article number:
47.921.E802-0
EAN:
-
-
-40°C to +80°C
-
Zhaga Book 18
Product information "BJB ZB 18 Dome 80 mm high - Cover for base plate with twist protection"
Cover for base plate with twist protection and push-in fixing into base plate by means of latching spigots
- Material: PC
- Colour: smoke grey
- Impact resistance from top: IK09 / Impact protection from side: IK07
- Protection class IP 66 by combination with the base plate
| Ausführung: | according to Zhaga Book 18 |
|---|---|
| Color: | smoke grey |

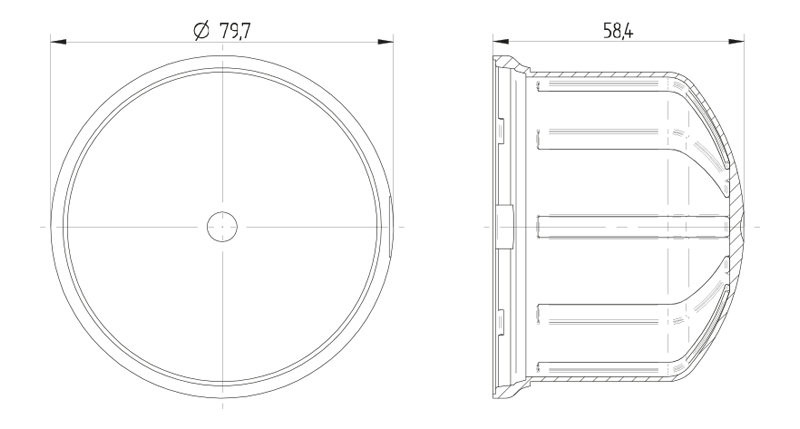

| Diameter: | 79.7 mm |
| Height: | 58,4 mm |
| IK impact strength grade: | IK09 / IK07 |
| Impact protection from side: | IK09 |
| Impact resistance: | from top IK09 |
| Material: | PC |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | -40°C up to +80°C |
| Packaging quantity: | 50 |
| Producttype: | Receptacle - the basis for outdoor light sensors |
| Protection type: | IP66 by combination with the base plate |
| Series: | Receptacle - the basis for outdoor light sensors |
| Utilityfilm Link: | https://youtu.be/UFZMU3j2OVA |
| Weight: | 28 g |
| mounting method: | Push-in fixing into base plate by means of latching spigots |
| old article number: | 47.921.-802.68 |
