LED ovendoor lamp, Square - 220 x 25 mm, 105 mm wire length
Article number:
77.116.1004-0
EAN:
-
-
-
0,5 - 1,0
Product information "LED ovendoor lamp, Square - 220 x 25 mm, 105 mm wire length"
• Easy installation by swivel-screw fixing
• Symmetric light distribution for optimised illumination of the oven muffle
• Variable LED parameters (CCT, CRI, number)
• Protection class III due to operation on SELV voltage
• max. possible current flow of the luminaire is to be most unfavorable operating condition to be determined
• The selection of our products, as well as the technically installationin accordance with the relevant regulations (e.g.IEC 62031 and IEC60335) are the responsibility of the user.
| Application areas: | Professional |
|---|---|
| Ausführung: | not dimmable |
| Colour temperature: | 3000 K |
| Durability: | Average life span (L70 / B50): 50.000 h (according to BJB test requirements) |
| Efficiency: | 87.5 lm / W |
| LED?: | yes |
| Lamp: | LED |
| Luminous flux Ta25° C If typical: | 315 lm |
| Material: | Heat sink: Aluminium; End caps: PET; Protective glass: Borosilcate, frosted |
| Max. Temperature at Tc point: | of heat sink: 100° C |

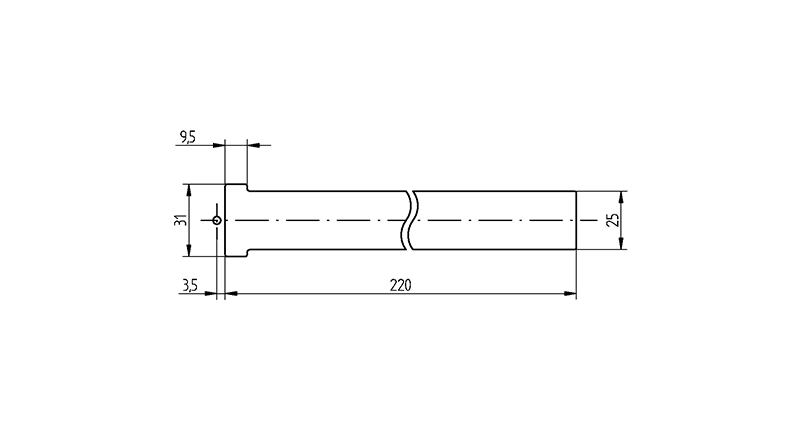

| Mounting cutout: | 220 x 25 mm |
| Note on electrical and optical tolerances: | Tolerances of optical and electrical data: ±10 %. |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating current: | 300 mA |
| Operating mode: | Constant voltage |
| Operating voltage: | 12V |
| Packaging quantity: | 72 |
| Producttype: | LED Oven Luminaire |
| Series: | PROFESSIONAL |
| Suitable for: | Professional oven |
| Thickness: | Materialdicke: 0.5 - 1.0 mm mm |
| Weight: | 96 g |
| Wires: | FEP, 0.35 mm², 105 mm |
| angle of radiation: | 120° |
| number of LEDs per module: | 15 |
| old article number: | 77.116.1004.36 |
