G9 Oven lamp Round ø 35,5
Article number:
77.208.5101-0
EAN:
-
-
6,3 x 0,8
-
0,6 - 2,5 mm
-
-
G9, 25W, 230V
-
Product information "G9 Oven lamp Round ø 35,5"
Also available with welded cables
Lamps for other voltages on request
cURus on request
Lamps for other voltages on request
cURus on request
| Application areas: | Home |
|---|---|
| Ausführung: | G9 Standard Oven Luminaire |
| Connector: | Tab Terminals 45° angle |
| Lamp: | G9, 25W |

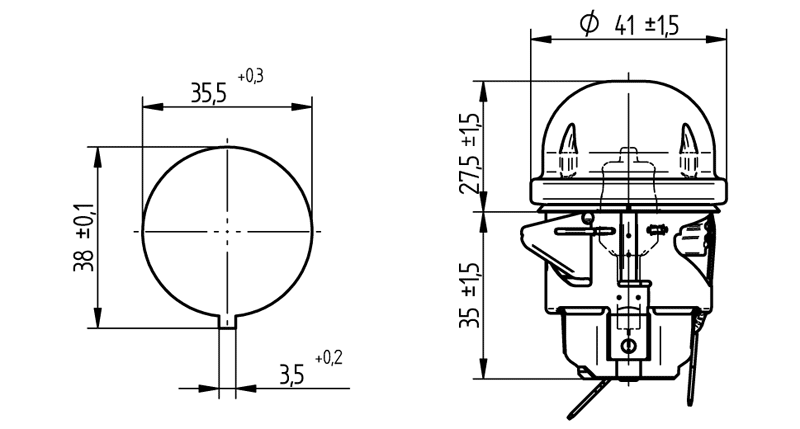

| Lens diameter: | 41 mm |
| Material: | Lens: soda-lime glass 350° CSleeve: CrNiLampholder: Steatite |
| Mounting cutout: | 35.5 mm |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Other: | Inserted lamp only for use in oven application |
| Packaging quantity: | 50 |
| Producttype: | G9 Standard Oven Luminaire |
| Series: | Standard |
| Suitable for: | Standard oven |
| Weight: | 93 g |
| mounting method 1: | Snap-in mounting |
| old article number: | 77.208.5101.10 |
Available Downloads
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 77.208.5101-0 | Genehmigung_liegt_vor-Approval_at_hand4805180 | ||
| 77.208.5101-0 | ENEC_Zeichen-ENEC_Approval741008 | ||
| 77.208.5101-0 | Genehmigung_liegt_vor-Approval_at_hand3315013 |
-
6,3 x 0,8
-
0,6 - 2,5 mm
-
-
G9, 25W, 230V
-
