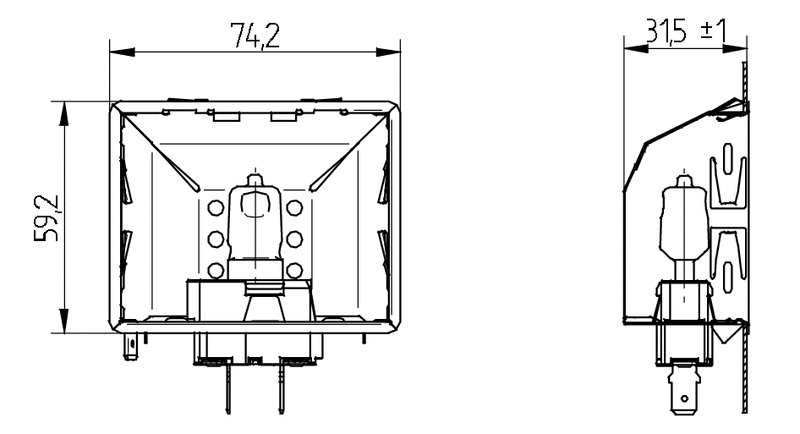

G9 Oven lamp Steam Square 55x70
Article number:
77.708.U111-0
EAN:
-
-
6,3 x 0,8
-
1,0 - 2,0 mm
-
-
G9, 25W, 230V
-
Product information "G9 Oven lamp Steam Square 55x70"
Versions with G4 or E14 lamps and cURus on request
Lamps for other voltages on request
Also available with welded cables
Lamps for other voltages on request
Also available with welded cables
| Application areas: | Home + Professional |
|---|---|
| Connector: | Tab terminals vertical |
| Lamp: | G9, 25W |
| Material: | Reflector: Steel aluminisedLampholder: Steatite |

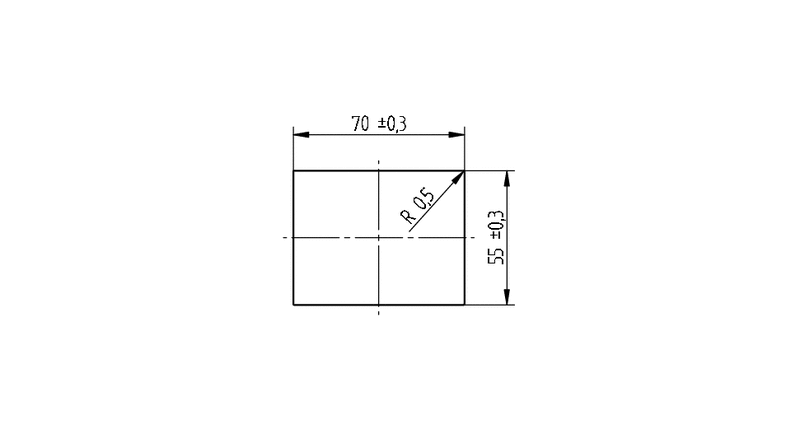

| Mounting cutout: | 55 x 75 mm |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Other: | Inserted lamp only for use in oven application |
| Packaging quantity: | 120 |
| Producttype: | G9 Steam Oven Luminaire |
| Series: | Steam |
| Suitable for: | Steam oven |
| Weight: | 47 g |
| mounting method 1: | Snap-in mounting |
| old article number: | 77.708.U111.23 |
Available Downloads
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 77.708.U111-0 | Genehmigung_liegt_vor-Approval_at_hand3499488 |
-
6,3 x 0,8
-
1,0 - 2,0 mm
-
-
G9, 25W, 230V
-

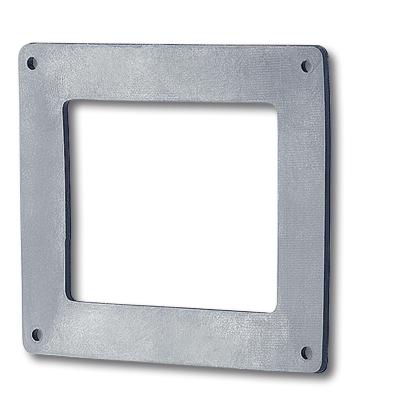

Accessories
